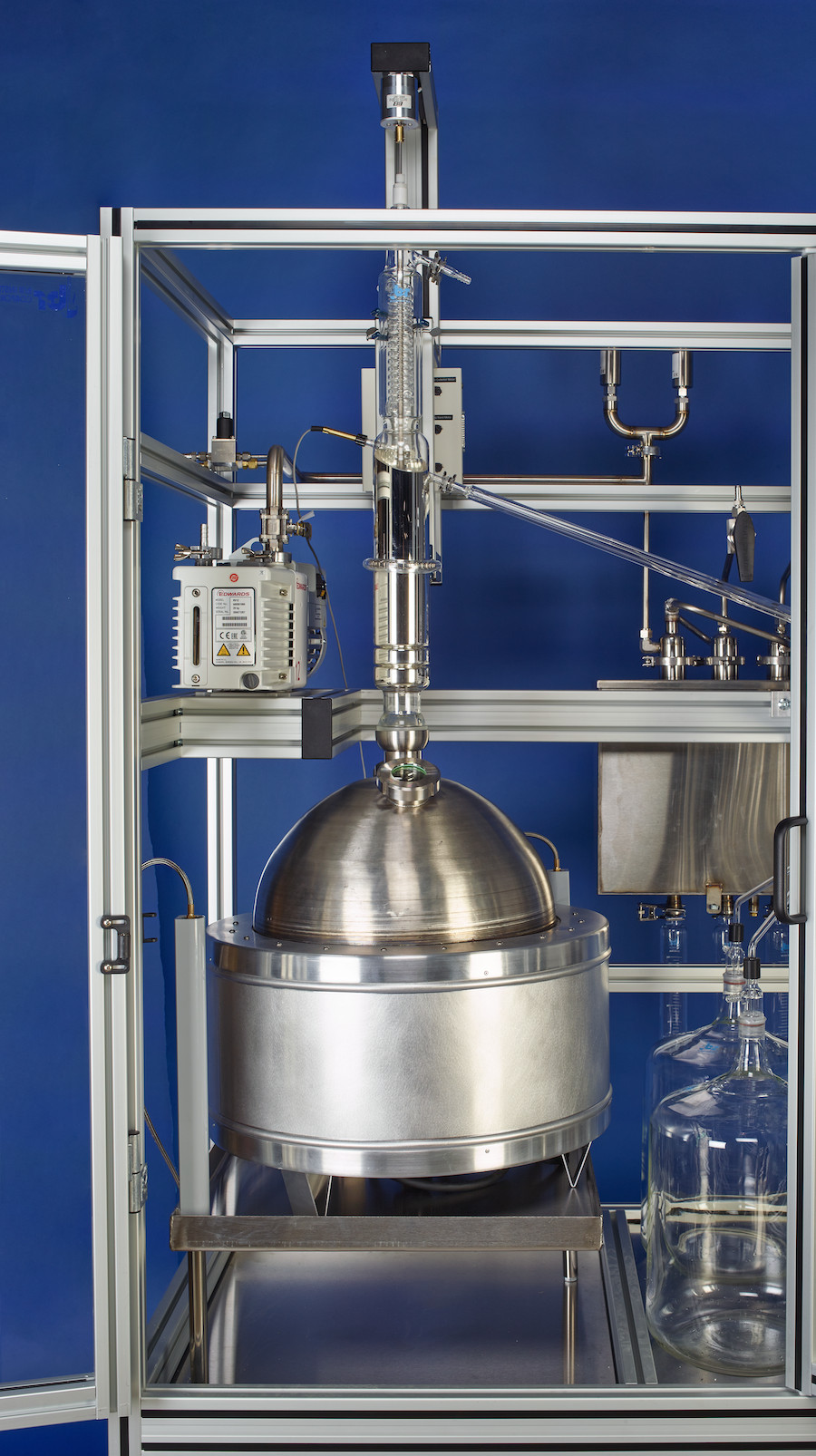

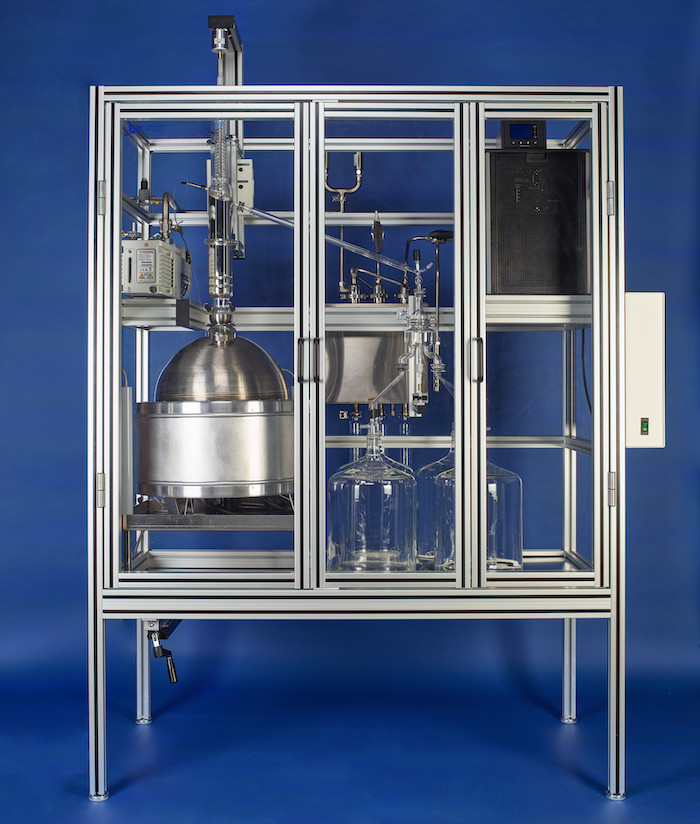

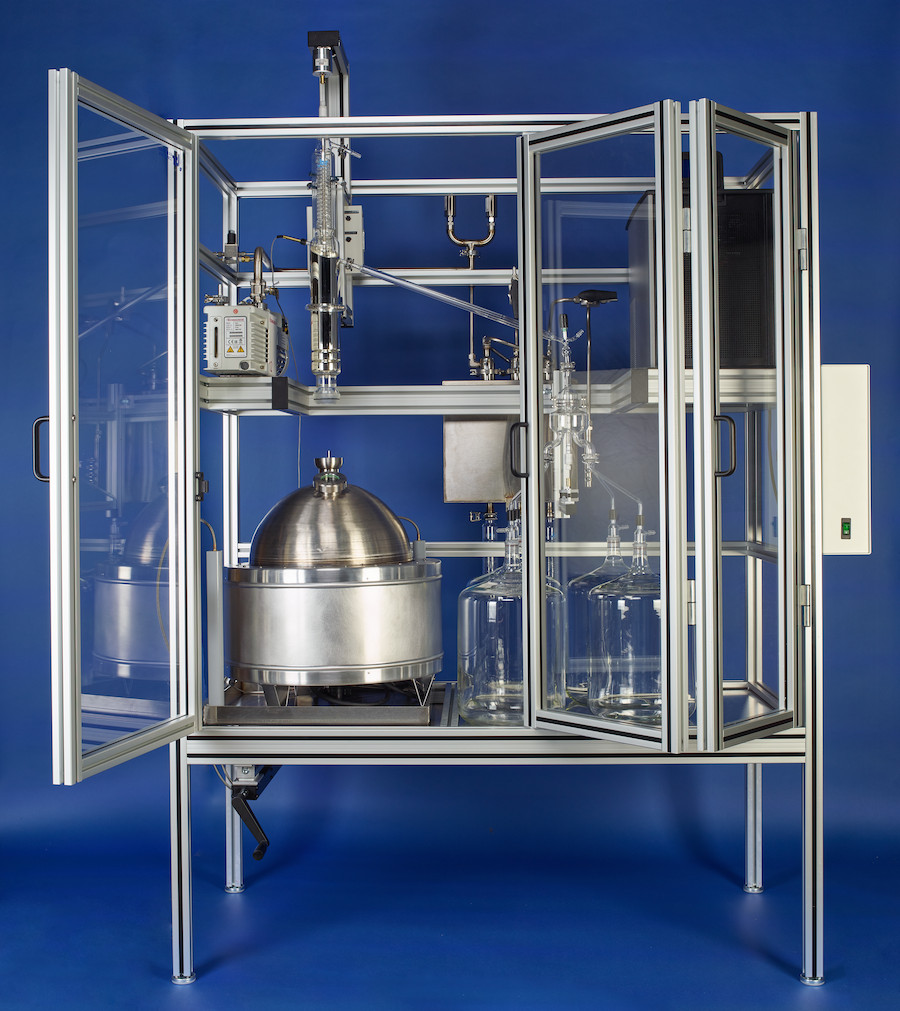

Refine cannabinoids from your crude cannabis extracts with the B/R Instrument 9200 Cannabis Oil Distillation System. The 9200 CODS offers single pass separation by removing terpenes, waxes, and other undesirable compounds to create the most potent oil on the market.
| Single pass | Unrivaled purity in a single distillation. Accomplish what it takes other systems 3 or more distillations to do. |
| Throughput Systems | with up to 0.5-3.6 L/hr. |
| Potency | Up to 90-95% Total Active Cannabinoids on first pass. |
| Software/Remote Viewing | Save, record, and view your run parameters with the only integrated distillation software available. |
| GMP Documents | Full set of GMP documents available. IQ, OQ, PQ, FAT, SAT and more |
Check out our blog for more info on spinning band distillation and other topics!
Models
| 5,12 Liters (0.5 - 1.5 L/hr) |
12, 22 Liters (1 - 2 L/hr) |
22, 50 Liters (2 - 3.5 L/hr) |
FEATURES
- PC & automatic controller
- Spinning Band type
- Boiler and flask size

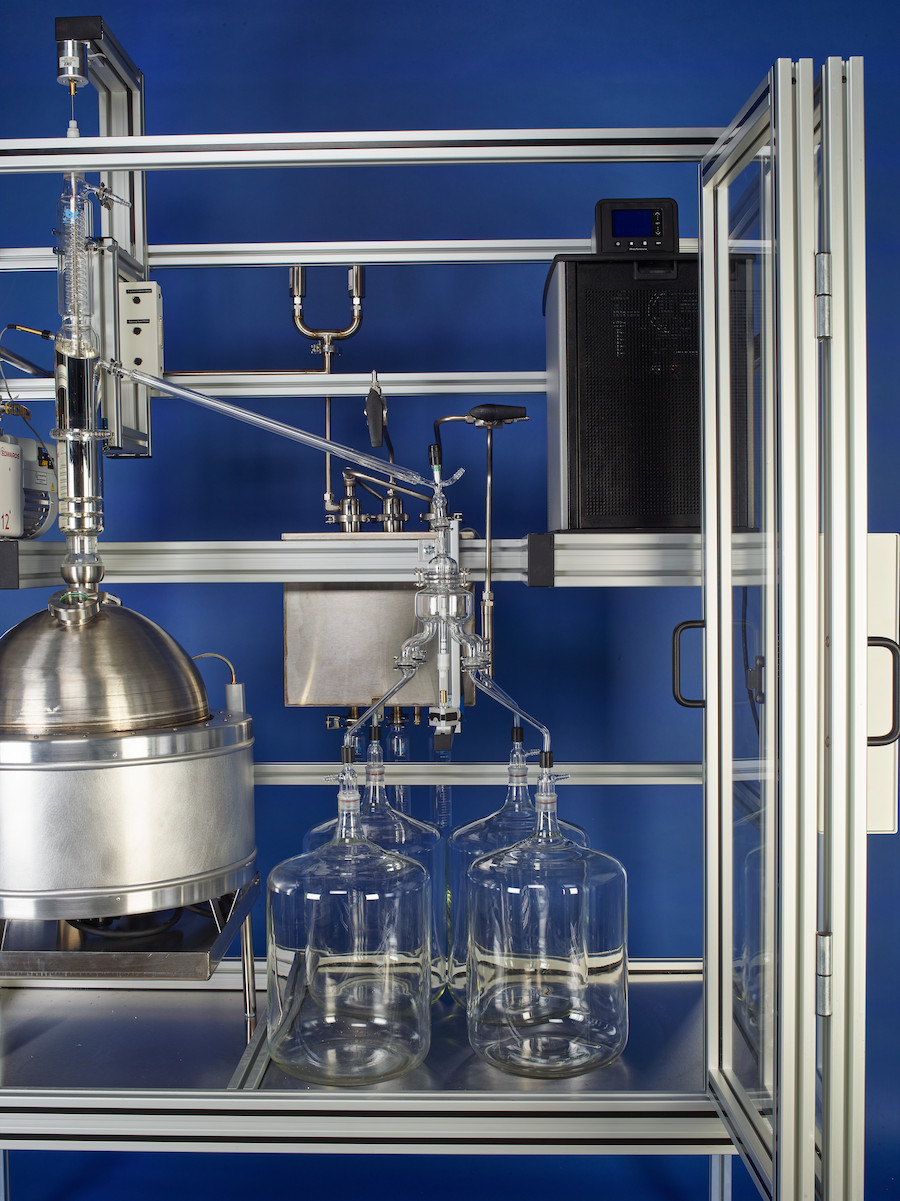

- Cold trap
- Fraction collector
- Vacuum operation
- Condenser
- Condenser bath
SPECIFICATIONS
- Automatic control of the entire distillation process
- Teflon Band
- 1, 2, 3, 5, 12, 22, and 50 Liters
- 3 Stage Stainless Steel Cold Trap
- Four 1-Liter, 9-Liter, or 19-Liter
- 100 - 0.01 Torr
- Inner Coil and Outer Jacket
- -20℃ to 100℃
- 21 mm and 32 mm
- 30 cm
- Vacuum Jacket and Silver "Mirror"
