Made in the USA
Features

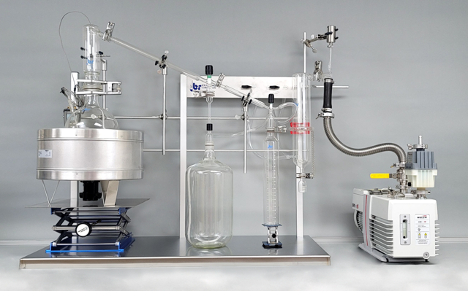

- Distillation column with silvered vacuum jacket for distillate maximum purity
- Heating/Stirring mantle prevents hot spots that lead to isomerization/degradation
- Insulating top minimizes heat input to the sample
- Liquid temperature probe monitors sample temperature
- Vapor temperature probes monitors distillate composition
- Vacuum valves and sensors for smooth pressure control
- Graduated receivers
- Cold Trap for vacuum pump and sensor protection
- All joints are o-ring sealed – vacuum tight at low vacuums, no vacuum grease
- Optional: Vacuum Pump and accessories
- Optional: Circulating Bath
Advantages
Specs
- Upgradeability with standard components
- Turn-key solutions possible
- Base + Lab Stand + Clamps included (Lab Jacks optional)
- Simple Operation
- Maintain system vacuum while swapping out collected fractions
Specs
- Ultimate Vac: 0.01 mmHg
- Pressure sensor ranges: 0.01 - 100 mmHg.
- Main Body Distillation Rate: ~1 L/hr
- Avg Distillation Temp: 160-190 C
- Boiling Flask Sizes: 2L, 5 L, 12 L
- Collection: 250 mL, 500 mL, 1 L, 9 L
- Vacuum Pump Recommended Minimum: Edwards RV 12 or Welch CRV Pro 16
- Circulating Bath Recommended: >-20 C to 100 C
Contact for pricing and more.Want to learn how to distill hemp or cannabis extracts? We offer private on-your-site training as well as group classes.
